Automatic Transformer Corrugated Fin Seam Welding Machine

FOB Reference Price:Get Latest Price
US $30,000-40,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZM-ZDH
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ZEMU
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Forming speed:
3~4 fins/minute
Plate width:
300~1600mm
Plate thickness:
1.0~2.0mm
Corrugation height:
50~400mm
Corrugation pitch:
>=45mm
Supply Ability
Supply Ability:
5 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Seaworthy packing
Port
Shanghai,China







Product Description



1. General Description
Automatic seam welding machine is used to weld the seam of corrugated fins.
The corrugated walls are seam-welded to reinforce the edges welded to the frames.


2. Main Units of Welding Machine:

1) Conveying table

2) Fin positioning &locking system

3) Electric control, Schneider Brand

4) PLC control: Mitsubishi Brand

5) Welding torch: 2 sets, Panasonic Brand

6) Touch screen: Siemens Brand

3. Specific Technical Data

1) Welding power: 25KW

2) Welding fin height: 50~400mm

3) Suitable fin width: 300~1600mm

4) Air Pressure: 0.8MPa

(User self-provided)

5) Welding system: Panasonic TIG Welder

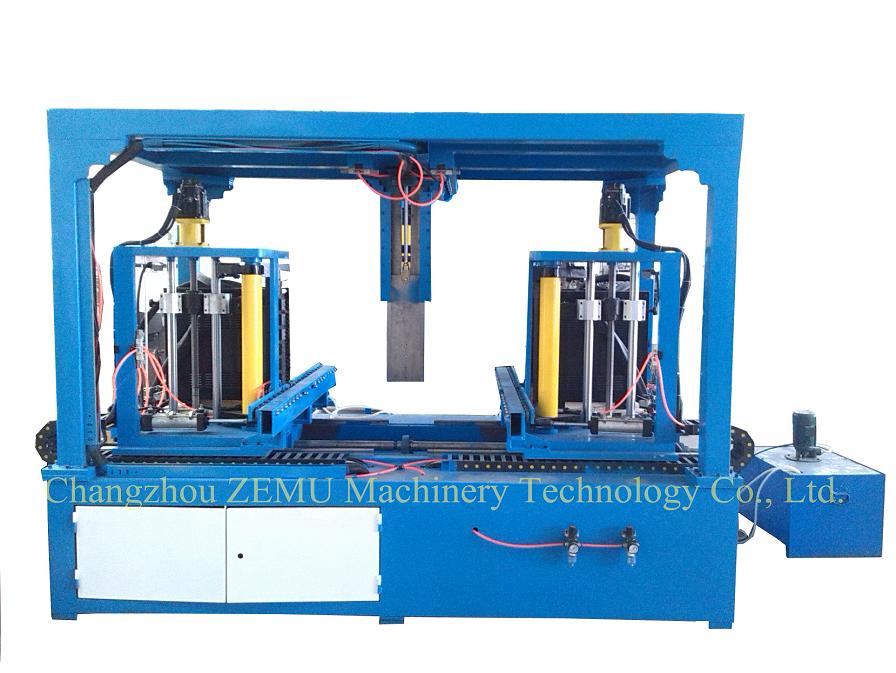

Photo of Transformer Tank Welding Machine
Automatica Corrugated Fin Seam Welding Machine .jpg

Running of Welding Machine
corrugated tank welding machine.jpg

Finished Products

RN7B3349_IMG_20171211_135459


Packaging & Shipping

Package: Seaworthy packing
Delivery Time: 3 months after receving advanced payment






Our Services



We can provide you not only good quality transformer corrugated tank machines but also good after-sale service.


Company Information





Changzhou Zemu Machinery Technology Co., Ltd. is a technological innovation-oriented company specialized

in R&D and manufacturing electrical equipment, automation equipment especially non-standard mechanical

equipment. We have established long-term cooperation with scientific institution and introduce international

technology with appropriate adjustment and receive customers’ consistent approval on performance,
quality, and cost, etc.


  Our range of services:
  * Transformer corrugated fin production lines(Fin forming, seam welding,spot welding)
  * Transformer radiator productin lines
  * Foil Winding Machine
  * Tank Assembly Manipulator for Corrugated Tanks
  * Vertical Bending Machine
  * Spot Welding Machine

  * Automatic Seam Welding Machine


FAQ



Q: Can you meet customized oil tank making need?

A: Yes, we can. We are not only specialized but also experienced in transformer making industry. Our designing department can design every detail as per customer’s special requirement. We also have a competitive technician team, which have successfully updated technical solutions for many end-users from India, Thailand, Indonesia, Sudan and some other countries.

Q: How is your after-sales service?

A: Our engineer will be dispatched to your side for debugging if problem occurs and remote diagnostic system can’t solve.

Q: Where is your factory located? How to visit there?

A: Our factory is located in Changzhou, Jiangsu Province, China, about 2 hours car ride from Shanghai. It will take shorter time if take CRH train. All our clients, from home or abroad, are warmly welcome to visit us!
