Automatic Line For Automatic Transformer Radiator machine manufacturers
1. Build up of thisRadiator production line machine 1) Automatic Decoiler

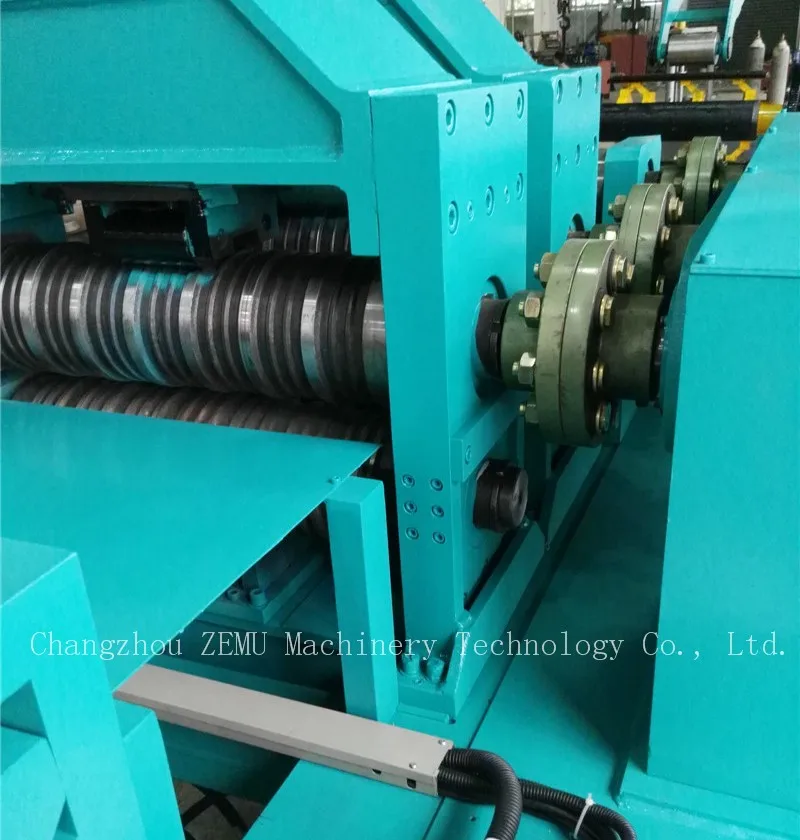

2) Roll forming machine

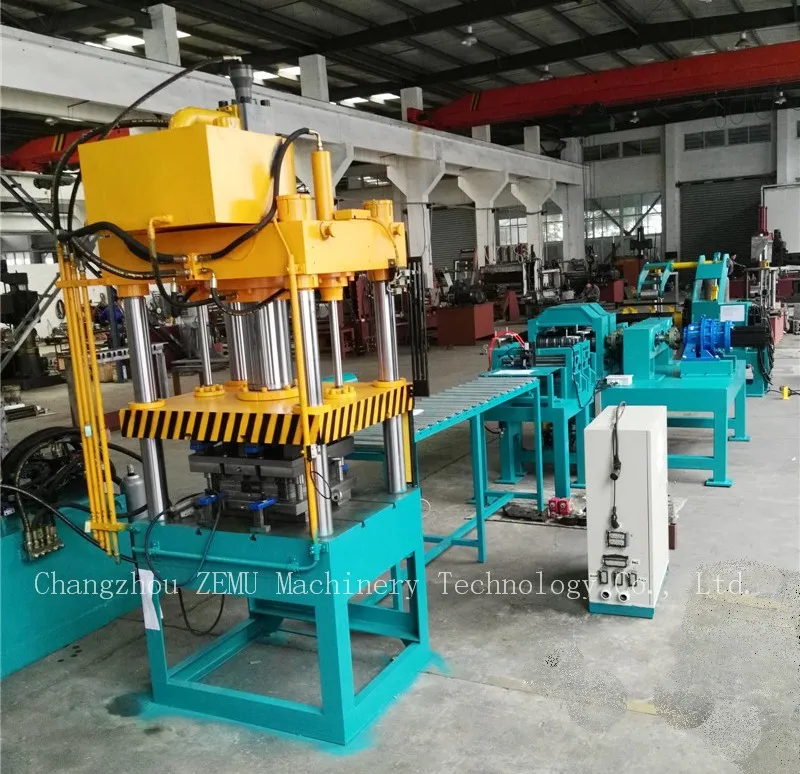

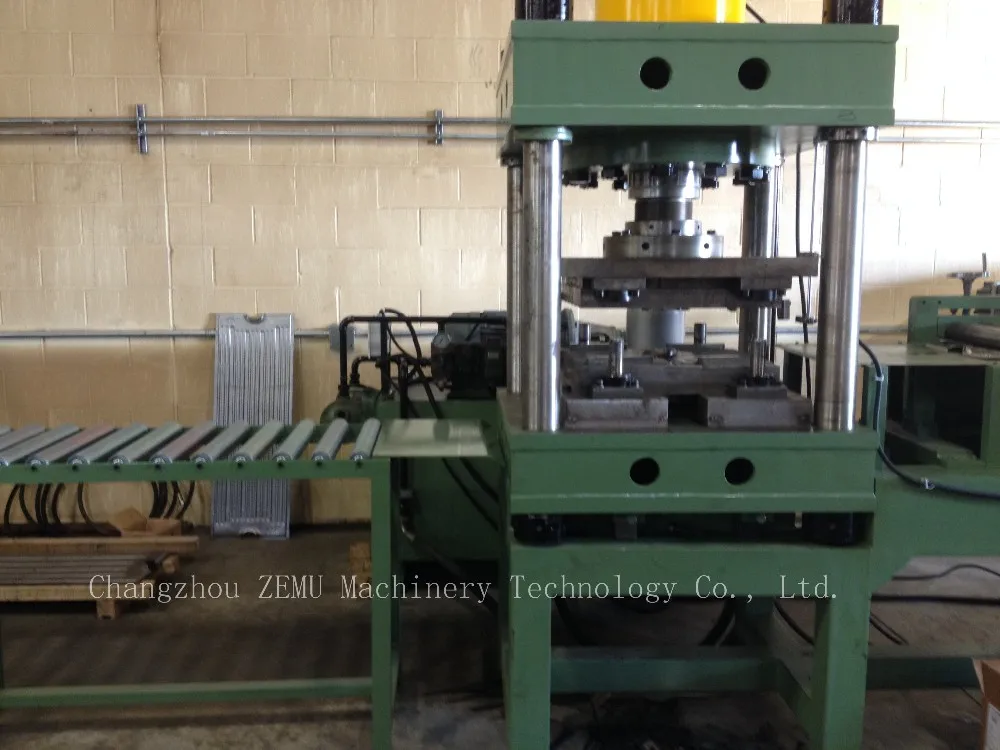

3) Hydraulic mold forming machine
4) Hydraulic Shearing machine
5) Hydraulic Station
6) PLC Control System
2. Basic Parameters of Transformer Radiator machine manufacturers 1)Raw material: SPCC, ST12, ST13, ST14 Cold-rolled plate 2)Plate thickness range: 1.0~1.2mm 3)Radiator fin specification: 320, 480, 520 or 535mm 4)Length range: 400~3000mm 5)Center distance: 500-4000mm 6)Roll forming speed : 5-8m/min 7)Plate flatness: Natural warping of the plate does not exceed 10mm
8)Rated voltage: 380V
9)Rated pressure: 10MPa 10)Rated power: 16.5KW
About our machine
Our automatic transformer radiator production line is developed by absorbing international advanced technology. The whole line includes automatic uncoiler, roll forming, punching, overturning for joining, multi spot welding, side seaming welding, terminal seam welding, side hobbing, terminal cutting, cradle, etc.. It is capable of producing any with width 520, 480, 320mm (based on customers' needs) and center distance from 500mm to 4000mm. It is with high degree of automation, and good forming, the general performance is near the level of international level as being the ideal processing equipment for radiator manufacturers. The production line can be used on-line or also available separately (center distance below 1500mm better used separately).
1),Q: Do you have after sales support? A: Yes, we are happy to give advice and have skilled technicians available across the world.
2), Q: Do you sell only standard machines? A: No, most of our machines are built according to customers specifications, using top brand name components.
3), Q:Where is your factory located? How can I visit there? A: Our factory is located in Changzhou City, JiangSu province,China.Just 1 hour by high-speed rail from Shanghai.All customa from home or abroad are warmly welcome to visit us!
4), Q:Any other service?
A:We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
