Corrugated fin seam welding machine for transformer

FOB Reference Price:Get Latest Price
US $50,000-60,000 / Set | 1 Set/Sets Negotiable (Min. Order)
Supply Ability:
4 Set/Sets per Quarter
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ZEMU
Model Number:
ZM-ZDH823
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Forming speed:
3~4 fins/min
Plate width:
300~1600mm
Plate thickness:
1.0~2.0mm
Corrugation height:
40~400mm
Corrugation pitch:
40~200mm
Material:
Steel Plate
Color:
depend on customer's needs
Packaging & Delivery
Packaging Details
Seaworthy packing, a 40ft container
Delivery Time
30 days after receiving advanced payment
Product Description





 1. Description of Corrugated fin seam welding machine for transformer

1) This is a special welding machine used in transformer manufacturing                 industry. This machine is not only to weld the bent edges of each fin but also the top reinforcing rod.
    2) Panel radiator welding machine adopts air cylinder to clamp the fins.
    3) Driven by servo motor and weld the fins, the welding gun can move from top to bottom through ball screw.
    4) The machine can work continuously due to the application of air cylinder feeding.
    5) The whole electrical circuit is controlled by PLC system,the machine can run full automation mode.



2.Advantage of Corrugated fin seam welding machine for transformer

1) Adopting argon arc welder automatic welding, the welding quality of this  automatic radiator fin welding machine
    2) The Panel radiator welding machine can be automatically controlled by PLC.



3. Parameters of Corrugated fin seam welding machine for transformer

   1) Rated duty cycle: Continuous
    2) Welding machine type: Panasonic YC-400TX Argon Arc Welder
    3) Motor power: 25KW
    4) Pressure system: 0.8MPa
    5) Welding fin height: 50~400mm
    6) Suitable fin width: 300~1600mm



4. Main configuration

1) Electric control, Schneider from Germany
    2) Welding torch: 2 sets, Panasonic from Japan
    3) PLC: Mitsubishi from Japan
    4) Touch screen: Siemens form Germany

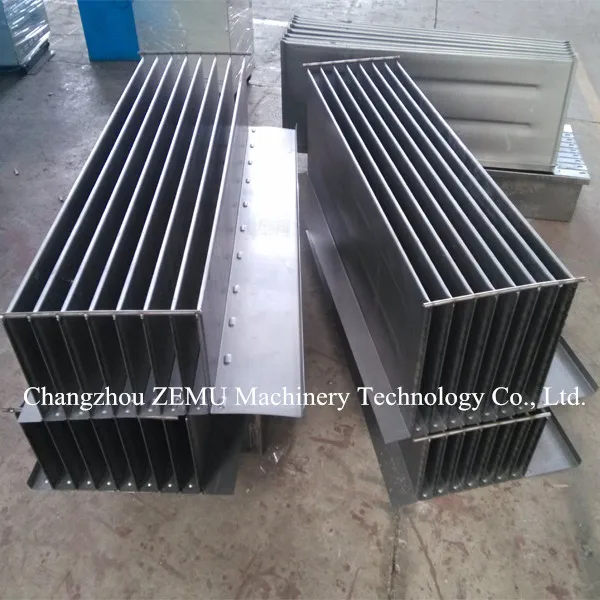

Corrugated fins with iron rod







Packaging & Shipping

 With unparelleled experience of delivering, we can deliver our products to all corners of the world by road, rail, ship etc.

Company Information



 ZEMU is China transformer machine manufacturer of quality transformer products. We can supply transformer tank machine, transformer radiator rolling machine, welding machine, transformer corrugated tanks and some other transformer machines.


If you are unsure of what machine would best suit your need then our technical department will be happy to advise you on the best machine type to fulfill your requirements.

Quality is our culture. All machines be tested for safety and performance in extreme conditions.
