Corrugated Fin Wall Production Line For Transformer

FOB Reference Price:Get Latest Price
US $70,000-80,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZM7765
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ZEMU
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Plate width:
300~1300mm
Plate thickness:
0.5~1.75mm
Corrugation height:
50~400mm
Forming speed:
3~4 fins/minute
Corrugation pitch:
>=45mm
Material:
Steel Plate
Fin gap:
6MM
Bending Height:
20mm
Application:
transformer
Floor Area:
20*5M
Supply Ability
Supply Ability:
5 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Seaworthy packing, a 40ft container
Port
Shanghai

Product Description

1. General Description Of Corrugated Fin Wall Production Line For Transformer
   1) The corrugated fin wall of transformer forming machine is the special equipment for manufacturing transformer corrugated fin walls.
   Our production line got the highly praise for its lasting performance, reliable quality and high
efficiency by
our customers who come from India, Thailand, Indonesia, Sudan and some other
 countries.

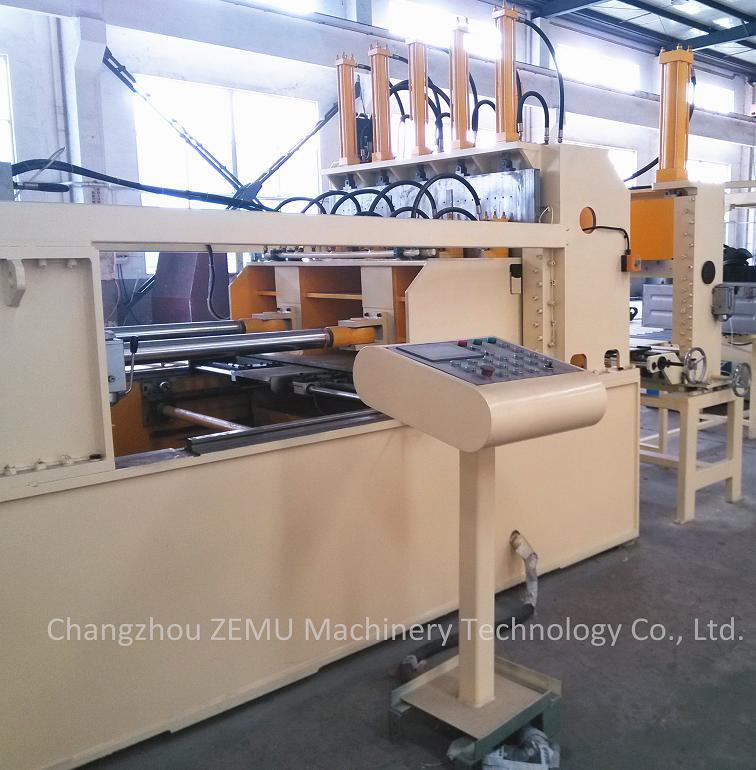

2) Our Corrugated Fin Wall Production Line For Transformer


2. Parts of Corrugated Fin Wall Production Line For Transformer

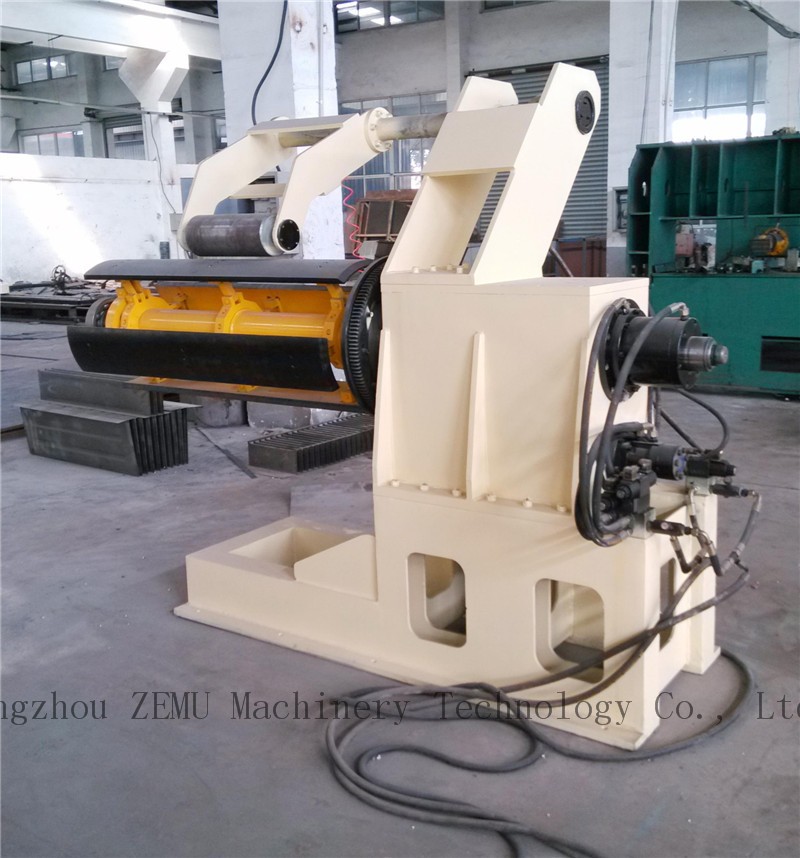

    1) Automatic Decoiler Machine

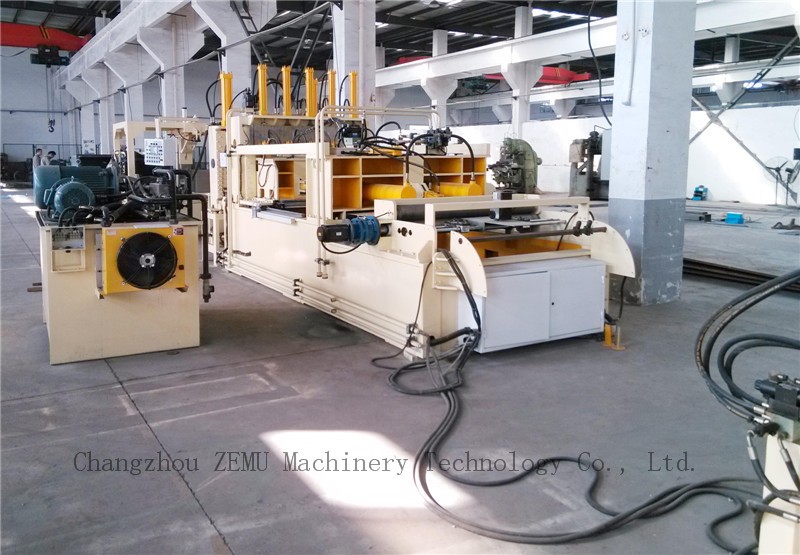

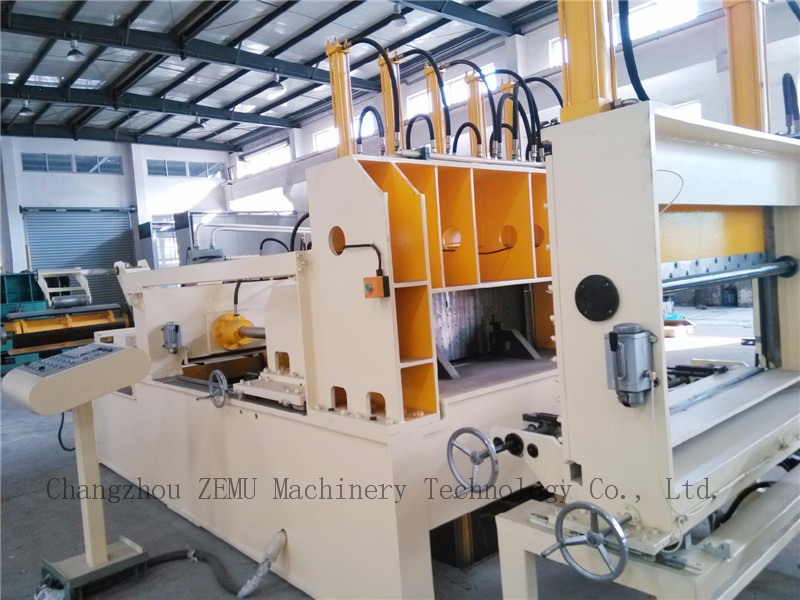

    2) Transformer Corrugated Radiator Former

    3) Hydraulic Transformer Tank Fin Cutting Machine

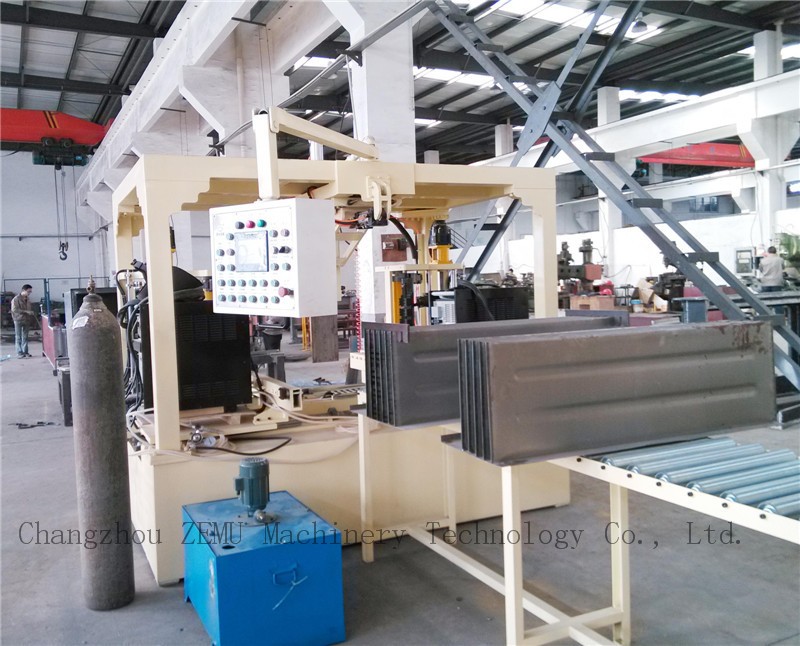

    4) Automatic Corrugated Fin Seam Welding Machine

    5) Hydraulic Station

    6) PLC Control System



3. Main Technical Parameters of Our Machines
   1) Corrugated Fin Width: 300mm-1300mm

   2) Thickness of Steel Sheet: 0.5mm-1.75mm

   3) Corrugation Height: 50mm-400mm

   4) Edge Bend Height: 20mm

   5) Forming Speed: 3-4fins/min

   6) Corrugation Pitch: >=45mm
   7) Corrugation Pitch Accuracy: ±0.25mm
   8) Fin Embossment: one or two (Optional)
   9) Corrugation Inner Gap: 6mm

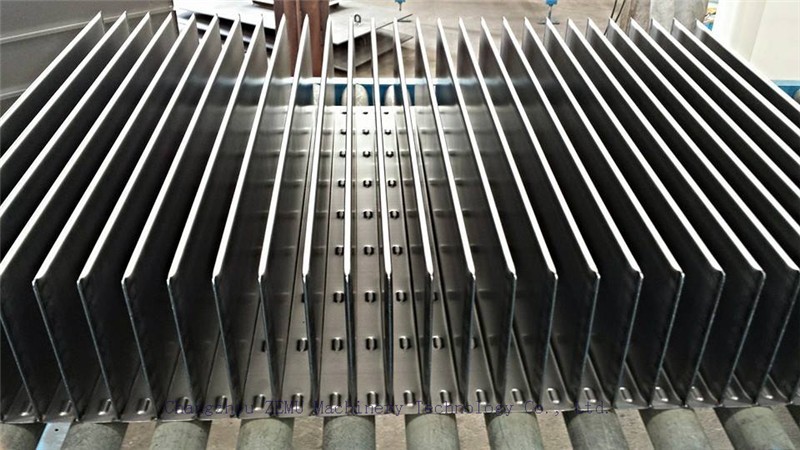

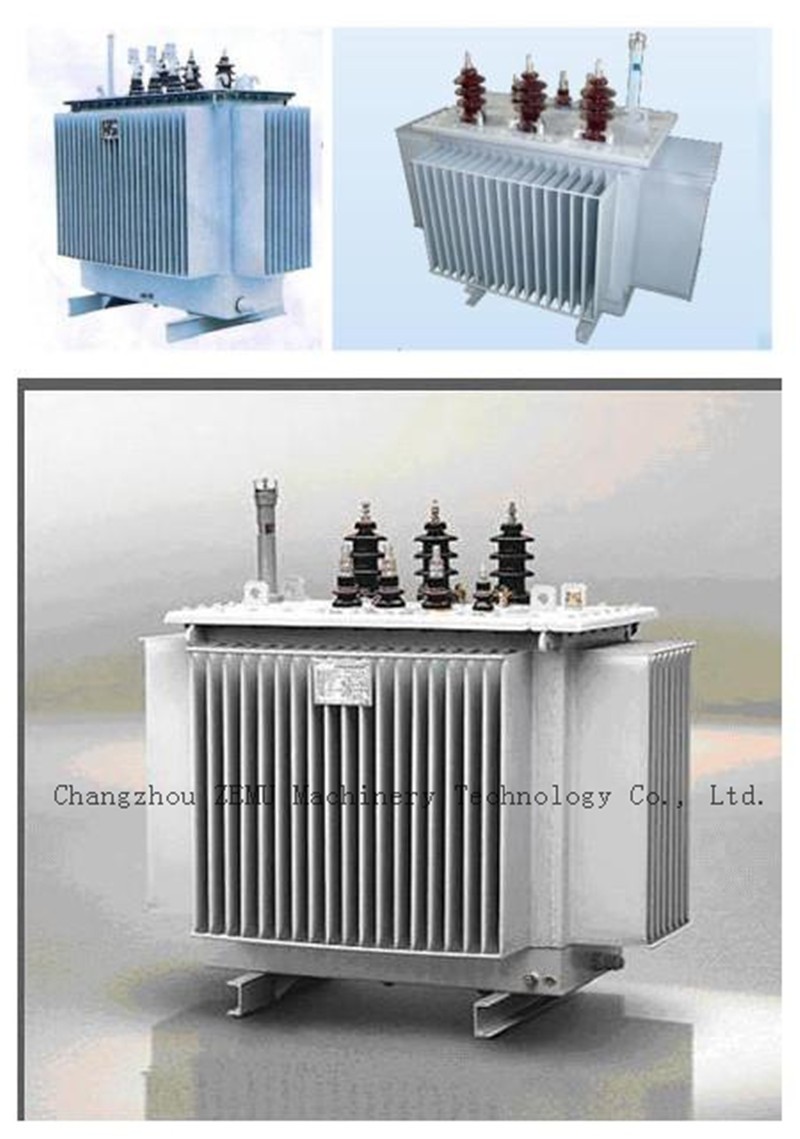

4. Finished Products-- Corrugated Transformer Cooling Radiators

Application


Banner 2-2.jpg

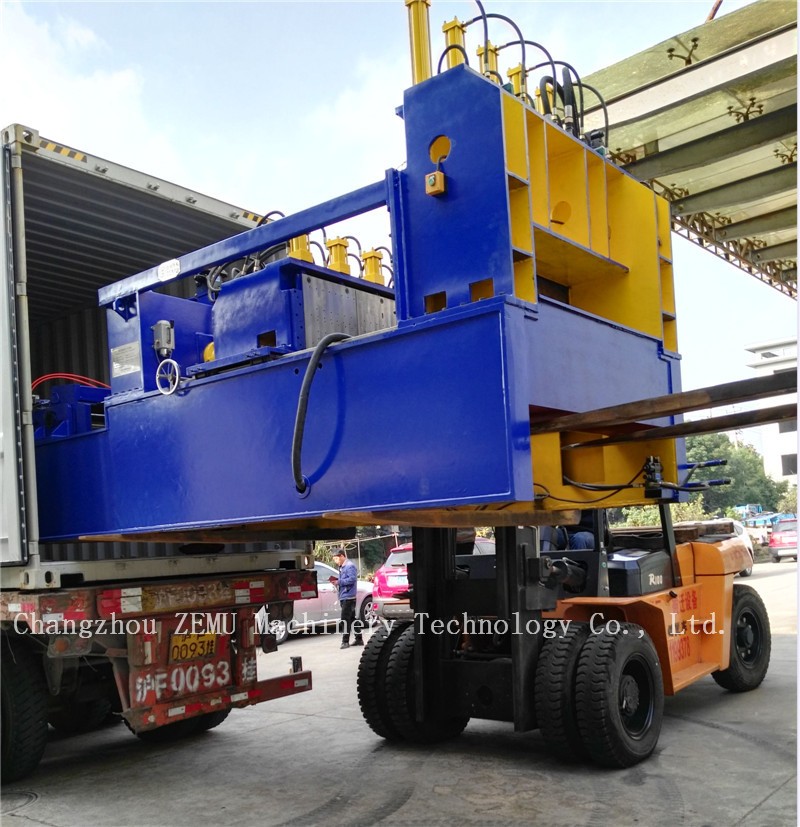

Packaging & Shipping



Packing: Seaworthy packing, a 40ft container
Delivery Time: 2~3 months after receiving ad
vanced payment






About us

ZEMU is China transformer machine manufacturer of quality transformer products. We can supply transformer
tank machine, transformer radiator rolling machine, welding machine, transformer corrugated tanks and some
other transformer machines.

If you are unsure of what machine would best suit your need then our technical department will be happy to
advise you on the best machine type to fulfill your requirements.

Our range of services:

 * Transformer corrugation fin production line (Fin folding & auto welding)

 * Transformer spot welding machine for fin embossment

 * Transformer pressed steel panel radiator lines(Roll forming & radiator model making)

 * Transformer tank assembly manipulator

 * Vertical bending machine for transformer tank



  The strength of ZEMU is not only processing equipment capacity but also based on our customers expectation

 and future driven knowledge. ZEMU will be stronger and stronger together with his customers in transformer
 industry and strive for domestic well-known and international in the near future step by step!

Quality is our culture. All machines be tested for safety and performance in extreme conditions.

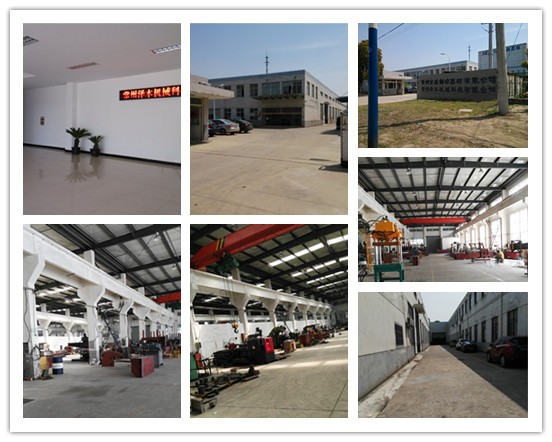

        Our workshop
