Corrugated Transformer Radiator Forming Machine

FOB Reference Price:Get Latest Price
US $50,000-60,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ZEMU
Model Number:
ZM1441
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Plate width:
300~1300mm
Plate thickness:
0.5~1.75mm
Corrugation height:
50~400mm
Corrugation pitch:
>=45mm
Forming speed:
3~4 fins/minute
Material:
Steel Plate
Supply Ability
Supply Ability:
5 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Seaworthy packing, a 40ft container
Port
Shanghai
Lead Time :
3~4 months after receiving advanced payment

Product Description

1. General Description of Corrugated Transformer Radiator Forming Machine
   1) Thecorrugated transformer radiator forming machine is the special equipment for producing transformer corrugated fins.

  Our production line got the highly praise for its lasting performance, reliable quality and high
efficiency by
our customers who come from India, Thailand, Indonesia, Sudan and some other
 countries.


   2) Our
corrugated transformer radiator forming machine in India

corrugated fin production line.jpg

2. Parts of Corrugated Transformer Radiator Forming Machine
    1) Automatic Decoiler Machine
1600mm Decoiler.jpg

    2) Transformer Corrugated Radiator Former
forming machine 1.JPG

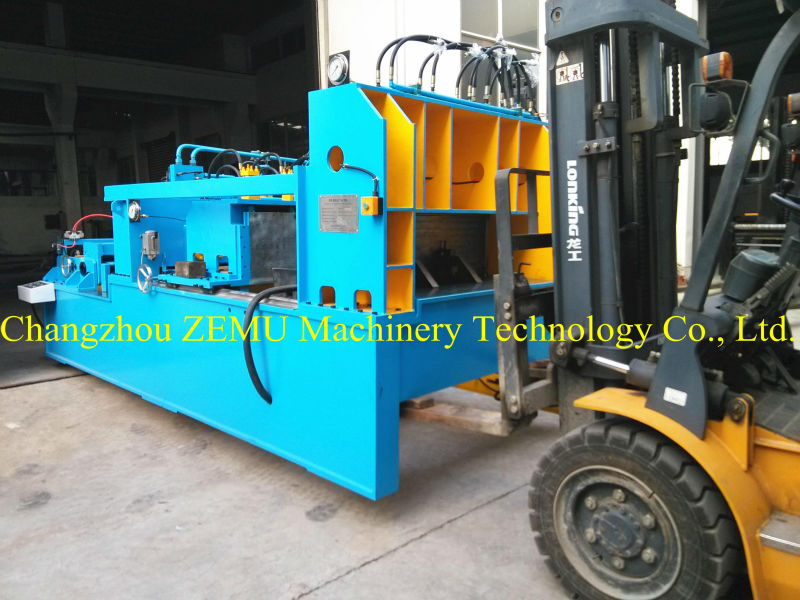

    3) Hydraulic Transformer Tank Fin Cutting Machine
SHEARING  machine.JPG

    4) Automatic Corrugated Fin Seam Welding Machine
1300mm Welding machine1.JPG

    5) Hydraulic Station
Hydraulic station.jpg

    6) PLC Control System


3. Main Technical Parameters of Our Machines
   1) Corrugated Fin Width: 300mm-1300mm

   2) Thickness of Steel Sheet: 0.5mm-1.75mm

   3) Corrugation Height: 50mm-400mm

   4) Edge Bend Height: 20mm

   5) Forming Speed: 3-4fins/min

   6) Corrugation Pitch: >=45mm
   7) Corrugation Pitch Accuracy: ±0.25mm
   8) Fin Embossment: one or two (Optional)
   9) Corrugation Inner Gap: 6mm


4. Finished Products-- Corrugated Transformer Radiators




Transformer Corrugated Oil Tank


Transformer Corrugated Tanks.jpg







Packaging & Shipping



Packing: Seaworthy packing, a 40ft container
Delivery Time: 3~4 months after receiving ad
vanced payment







Our Services

We are pleased to offer our engineering service and installation service. Technical support is
available for all our products.








About us

ZEMU is China transformer machine manufacturer of quality transformer products. We can supply transformer
tank machine, transformer radiator rolling machine, welding machine, transformer corrugated tanks and some
other transformer machines.

If you are unsure of what machine would best suit your need then our technical department will be happy to
advise you on the best machine type to fulfill your requirements.

Our range of services:

 * Transformer corrugation fin production line (Fin folding & auto welding)

 * Transformer spot welding machine for fin embossment

 * Transformer pressed steel panel radiator lines(Roll forming & radiator model making)

 * Transformer tank assembly manipulator

 * Vertical bending machine for transformer tank


Quality is our culture. All machines be tested for safety and performance in extreme conditions.
